Tripp Lite by Eaton SmartRack 6U Low-Profile Switch-Depth Wall-Mount Mini Rack Enclosure Cabinet with Clear Acrylic Window, SRW6UG
Tripp Lite by Eaton SmartRack 6U Low-Profile Switch-Depth Wall-Mount Mini Rack Enclosure Cabinet with Clear Acrylic Window, SRW6UG

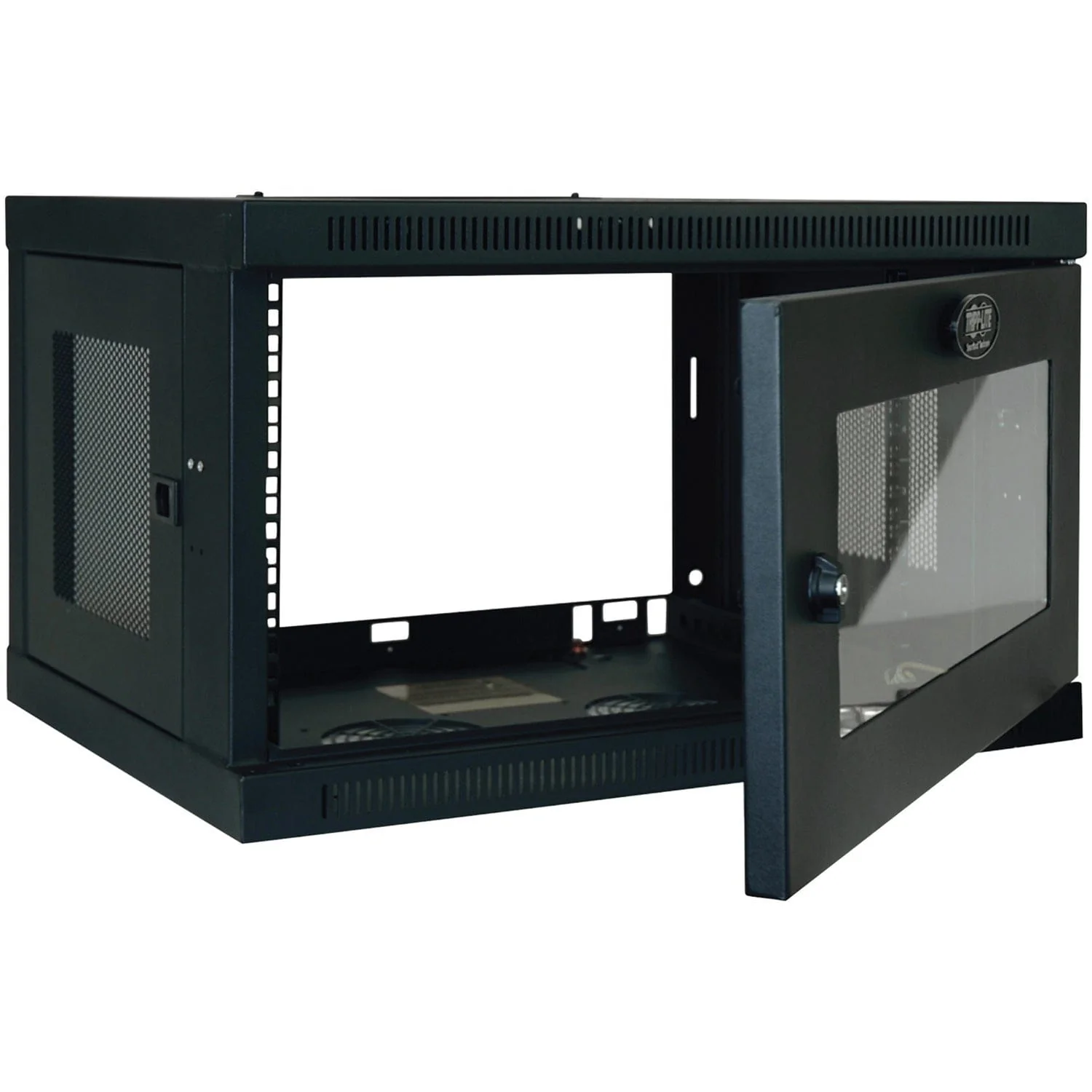

The Tripp Lite by Eaton SRW6UG SmartRack 6U Low-Profile Switch Depth Wall-Mount Rack Enclosure Cabinet with Window is designed to house EIA-standard 19-in. rack equipment in network wiring closets, retail locations, classrooms, back offices, and other areas with limited floor space where you need equipment to be secure, organized, and out of the way. The front door features a shatter-resistant clear acrylic window that lets you monitor equipment readouts without unlocking the enclosure. Not only does the window help prevent equipment tampering and reduce acoustic noise, but it also adds visual flair to your IT installation. Constructed from heavy-duty steel with a durable black powder-coated finish, the cabinet has a maximum load capacity of 200 lbs. The doors and side panels lock securely to help prevent damage, tampering, or theft. The front, top, bottom, and removable side panels are vented, which allows air to flow freely and keep equipment cool. The reversible doors can open left or right by rotating the cabinet 180° before mounting. Convenient top and bottom ports allow easy cable routing. The SRW6UG comes fully assembled and ready to mount to the wall, or use the optional SRCASTER rolling caster kit (sold separately) to make it a mobile rack.
Features
- Ideal for network wiring closets, retail locations, classrooms, back offices, and other areas with limited floor space
- Secures 6U of 19-in. rack equipment up to 16.5-in. deep
- Maximum load capacity of 200 lbs.
- Front door includes shatter-resistant, clear acrylic window for monitoring equipment without unlocking the enclosure
- Cabinet should be rotated 180° before mounting to open reversible doors left or right
- Locking steel cabinet vented at sides, front, top, and bottom; flow-through ventilation keeps equipment cool
- Convenient ports with removable covers allow cable routing through top and bottom
- Wall-mounting holes spaced 16-in. apart for standard wall stud placement

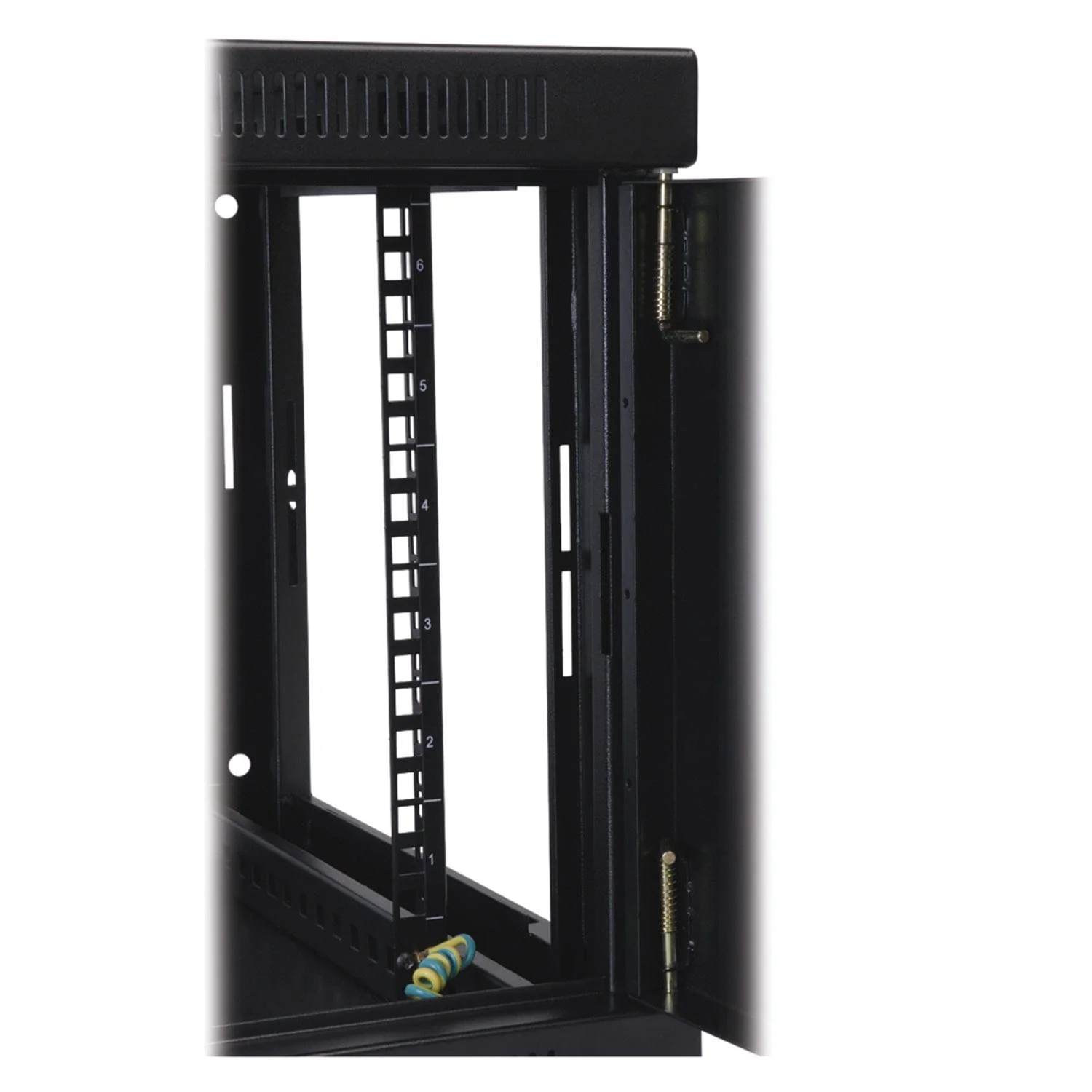

- Vertical mounting rails adjust in 7/8-in. increments to accommodate equipment up to 20.5-in. deep, such as network switches and patch panels

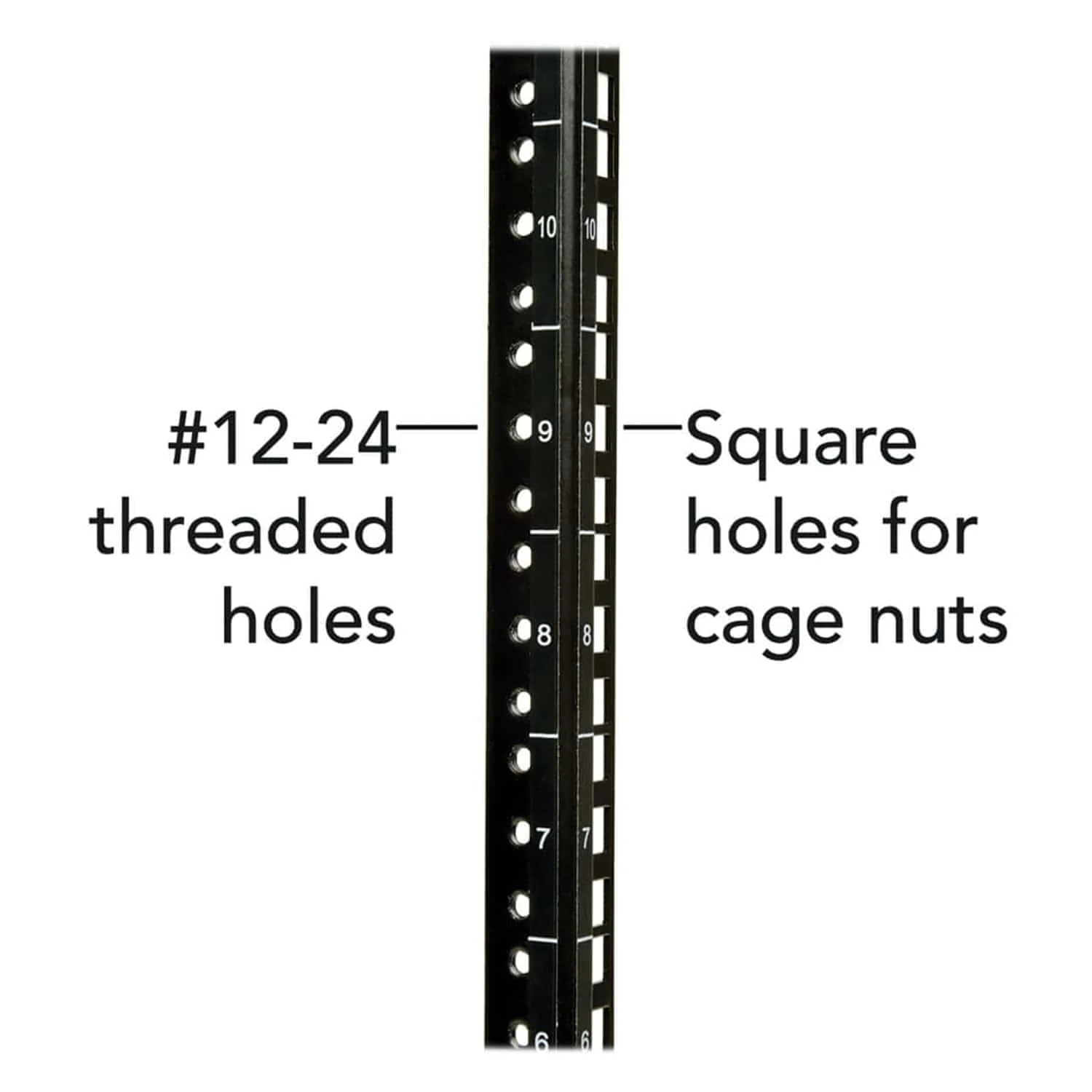

- Rails support square hole or 12-24 threaded-hole mounting
- Rack spaces numbered for easy reference
- Can be converted to a roll rack with optional SRCASTER (sold separately)
- Meets Payment Card Industry Standards
- Ships fully assembled
- Includes mounting hardware, 2 keys, and owner's manual
Original: $311.99
-65%$311.99
$109.20More Images
Tripp Lite by Eaton SmartRack 6U Low-Profile Switch-Depth Wall-Mount Mini Rack Enclosure Cabinet with Clear Acrylic Window, SRW6UG
The Tripp Lite by Eaton SRW6UG SmartRack 6U Low-Profile Switch Depth Wall-Mount Rack Enclosure Cabinet with Window is designed to house EIA-standard 19-in. rack equipment in network wiring closets, retail locations, classrooms, back offices, and other areas with limited floor space where you need equipment to be secure, organized, and out of the way. The front door features a shatter-resistant clear acrylic window that lets you monitor equipment readouts without unlocking the enclosure. Not only does the window help prevent equipment tampering and reduce acoustic noise, but it also adds visual flair to your IT installation. Constructed from heavy-duty steel with a durable black powder-coated finish, the cabinet has a maximum load capacity of 200 lbs. The doors and side panels lock securely to help prevent damage, tampering, or theft. The front, top, bottom, and removable side panels are vented, which allows air to flow freely and keep equipment cool. The reversible doors can open left or right by rotating the cabinet 180° before mounting. Convenient top and bottom ports allow easy cable routing. The SRW6UG comes fully assembled and ready to mount to the wall, or use the optional SRCASTER rolling caster kit (sold separately) to make it a mobile rack.
Features
- Ideal for network wiring closets, retail locations, classrooms, back offices, and other areas with limited floor space
- Secures 6U of 19-in. rack equipment up to 16.5-in. deep
- Maximum load capacity of 200 lbs.
- Front door includes shatter-resistant, clear acrylic window for monitoring equipment without unlocking the enclosure
- Cabinet should be rotated 180° before mounting to open reversible doors left or right
- Locking steel cabinet vented at sides, front, top, and bottom; flow-through ventilation keeps equipment cool
- Convenient ports with removable covers allow cable routing through top and bottom
- Wall-mounting holes spaced 16-in. apart for standard wall stud placement
- Vertical mounting rails adjust in 7/8-in. increments to accommodate equipment up to 20.5-in. deep, such as network switches and patch panels
- Rails support square hole or 12-24 threaded-hole mounting
- Rack spaces numbered for easy reference
- Can be converted to a roll rack with optional SRCASTER (sold separately)
- Meets Payment Card Industry Standards
- Ships fully assembled
- Includes mounting hardware, 2 keys, and owner's manual
Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
The Tripp Lite by Eaton SRW6UG SmartRack 6U Low-Profile Switch Depth Wall-Mount Rack Enclosure Cabinet with Window is designed to house EIA-standard 19-in. rack equipment in network wiring closets, retail locations, classrooms, back offices, and other areas with limited floor space where you need equipment to be secure, organized, and out of the way. The front door features a shatter-resistant clear acrylic window that lets you monitor equipment readouts without unlocking the enclosure. Not only does the window help prevent equipment tampering and reduce acoustic noise, but it also adds visual flair to your IT installation. Constructed from heavy-duty steel with a durable black powder-coated finish, the cabinet has a maximum load capacity of 200 lbs. The doors and side panels lock securely to help prevent damage, tampering, or theft. The front, top, bottom, and removable side panels are vented, which allows air to flow freely and keep equipment cool. The reversible doors can open left or right by rotating the cabinet 180° before mounting. Convenient top and bottom ports allow easy cable routing. The SRW6UG comes fully assembled and ready to mount to the wall, or use the optional SRCASTER rolling caster kit (sold separately) to make it a mobile rack.
Features
- Ideal for network wiring closets, retail locations, classrooms, back offices, and other areas with limited floor space
- Secures 6U of 19-in. rack equipment up to 16.5-in. deep
- Maximum load capacity of 200 lbs.
- Front door includes shatter-resistant, clear acrylic window for monitoring equipment without unlocking the enclosure
- Cabinet should be rotated 180° before mounting to open reversible doors left or right
- Locking steel cabinet vented at sides, front, top, and bottom; flow-through ventilation keeps equipment cool
- Convenient ports with removable covers allow cable routing through top and bottom
- Wall-mounting holes spaced 16-in. apart for standard wall stud placement
- Vertical mounting rails adjust in 7/8-in. increments to accommodate equipment up to 20.5-in. deep, such as network switches and patch panels
- Rails support square hole or 12-24 threaded-hole mounting
- Rack spaces numbered for easy reference
- Can be converted to a roll rack with optional SRCASTER (sold separately)
- Meets Payment Card Industry Standards
- Ships fully assembled
- Includes mounting hardware, 2 keys, and owner's manual
