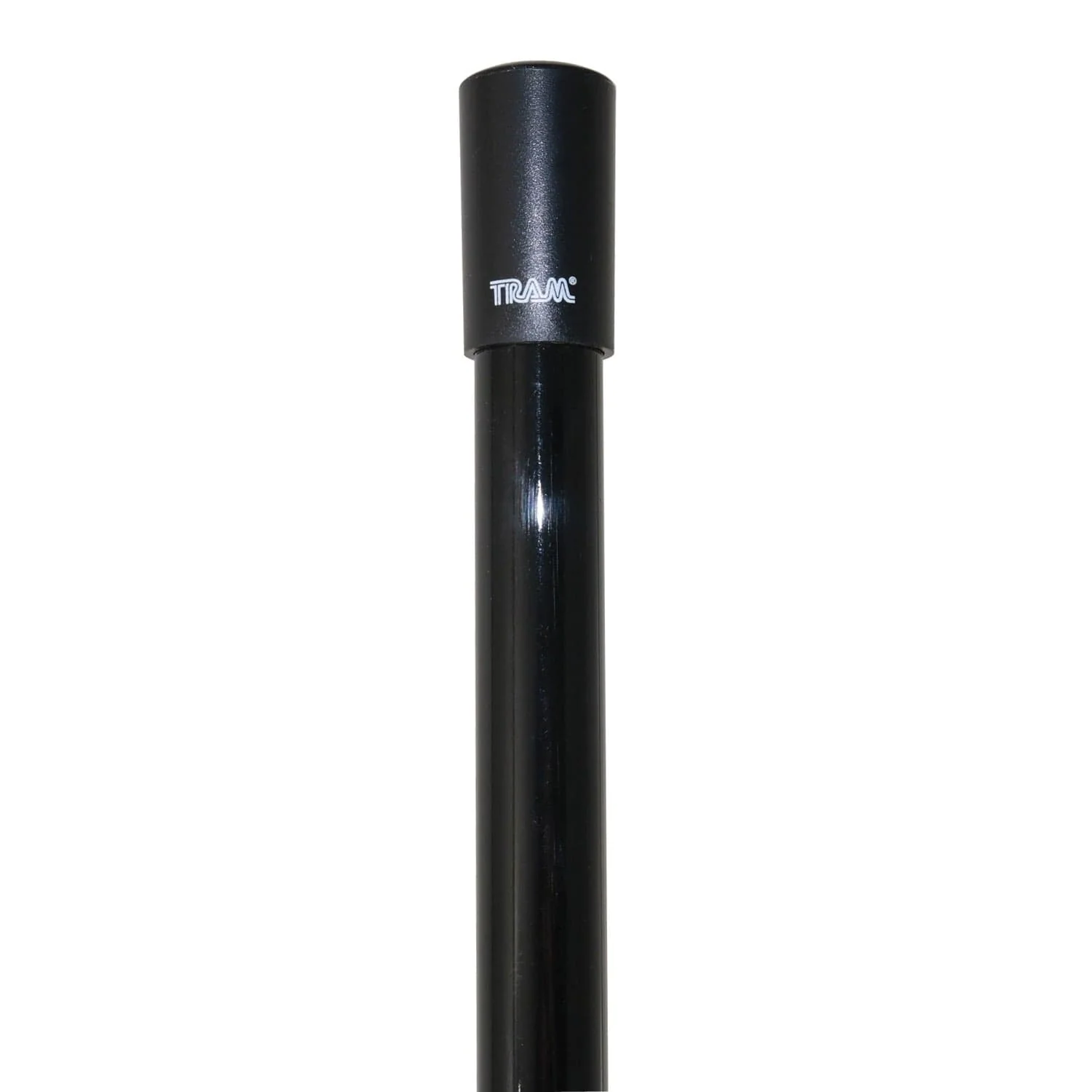

Tram 200-Watt Pretuned 400 MHz to 495 MHz UHF Fiberglass Base Antenna with 50-Ohm UHF SO-239 Connector, 39 In. Tall, Black
Tram 200-Watt Pretuned 400 MHz to 495 MHz UHF Fiberglass Base Antenna with 50-Ohm UHF SO-239 Connector, 39 In. Tall, Black
The Black Tram 200-Watt Pretuned 400 MHz to 495 MHz UHF Fiberglass Base Antenna with 50-Ohm UHF SO-239 Connector has a heavy-duty fiberglass construction, is 5-ft. 3-in. tall and can withstand winds up to 135 MPH. It accepts mast diameters between 1-3/16 in. and 2-7/16 in. It comes with three 7-in. stainless steel radials, UHF female (SO-239) connector, and bracket.
Features
- 200 watts power rating
- 5 ft. 3 in. tall
- Heavy-duty, 3-section fiberglass construction; max wind speed of 135 MPH
- Special joint design connects fiberglass tubing so sections maintain the same strength as a single-section design
- 406 MHz to 512 MHz; 10 MHz bandwidth; 6.5 dBd gain
- 5/8 wave 3 elements; 7 in. radial length
- Radiator and coil are hermetically sealed in fiberglass tubing to assure low SWR in all weather
- DC ground construction allow static dissipation for low noise ratio and maximum lightning protection
- Vertical polarization with 50 ohms impedance
- UHF (SO-239) connector
- Mast diameter accepted: 1-3/16 in. to 2-7/16 in.
- Includes mounting bracket with three 7 in. radials
- Black
More Images
Tram 200-Watt Pretuned 400 MHz to 495 MHz UHF Fiberglass Base Antenna with 50-Ohm UHF SO-239 Connector, 39 In. Tall, Black
The Black Tram 200-Watt Pretuned 400 MHz to 495 MHz UHF Fiberglass Base Antenna with 50-Ohm UHF SO-239 Connector has a heavy-duty fiberglass construction, is 5-ft. 3-in. tall and can withstand winds up to 135 MPH. It accepts mast diameters between 1-3/16 in. and 2-7/16 in. It comes with three 7-in. stainless steel radials, UHF female (SO-239) connector, and bracket.
Features
- 200 watts power rating
- 5 ft. 3 in. tall
- Heavy-duty, 3-section fiberglass construction; max wind speed of 135 MPH
- Special joint design connects fiberglass tubing so sections maintain the same strength as a single-section design
- 406 MHz to 512 MHz; 10 MHz bandwidth; 6.5 dBd gain
- 5/8 wave 3 elements; 7 in. radial length
- Radiator and coil are hermetically sealed in fiberglass tubing to assure low SWR in all weather
- DC ground construction allow static dissipation for low noise ratio and maximum lightning protection
- Vertical polarization with 50 ohms impedance
- UHF (SO-239) connector
- Mast diameter accepted: 1-3/16 in. to 2-7/16 in.
- Includes mounting bracket with three 7 in. radials
- Black
Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
The Black Tram 200-Watt Pretuned 400 MHz to 495 MHz UHF Fiberglass Base Antenna with 50-Ohm UHF SO-239 Connector has a heavy-duty fiberglass construction, is 5-ft. 3-in. tall and can withstand winds up to 135 MPH. It accepts mast diameters between 1-3/16 in. and 2-7/16 in. It comes with three 7-in. stainless steel radials, UHF female (SO-239) connector, and bracket.
Features
- 200 watts power rating
- 5 ft. 3 in. tall
- Heavy-duty, 3-section fiberglass construction; max wind speed of 135 MPH
- Special joint design connects fiberglass tubing so sections maintain the same strength as a single-section design
- 406 MHz to 512 MHz; 10 MHz bandwidth; 6.5 dBd gain
- 5/8 wave 3 elements; 7 in. radial length
- Radiator and coil are hermetically sealed in fiberglass tubing to assure low SWR in all weather
- DC ground construction allow static dissipation for low noise ratio and maximum lightning protection
- Vertical polarization with 50 ohms impedance
- UHF (SO-239) connector
- Mast diameter accepted: 1-3/16 in. to 2-7/16 in.
- Includes mounting bracket with three 7 in. radials
- Black
