JBL BAR1300X MK2 11.1.4 Ch Dolby Atmos Soundbar System, Black - Certified Refurbished
You can get a cinematic sound experience in seconds. One that fills your entire room with true Dolby Atmos® and DTS:X for vivid, immersive 3D spatial audio that you can customize to fit any moment. Just pick up the detachable wireless speakers from either end of the JBL BAR 1300MK2 soundbar and put them behind where you’re sitting. Far apart for family movie night with the new superhero hit or closer for a cozy romantic playlist— chosen from hundreds of available streaming services. Feel deep, punchy bass from a mighty 12” subwoofer and enjoy the widest, most cinematic soundstage with MultiBeam™ 3.0. When you’re not watching TV, pair one or both of the detachable speakers to any Bluetooth® device for portable and powerful sound anywhere in your home. And all of this works seamlessly with your TV. Your TV just can’t offer the rich, powerful sound you deserve, but JBL has meant great sound for cinemas, recording studios, and concert halls for nearly a century. Bring our level of craft to your own home.
Features
- Real atmospheric surround sound with detachable wireless speakers
- 1570W max output power and a 12” wireless subwoofer
- True Dolby Atmos® and DTS:X
- MultiBeam™ 3.0
- PureVoice 2.0
- SmartDetails
- Broadcasting
- Night listening
- Easy sound calibration
- Portable Bluetooth® speakers
- Works with all ecosystems and music streaming services
- JBL ONE App
- HDMI eARC with 4K Dolby Vision passthrough

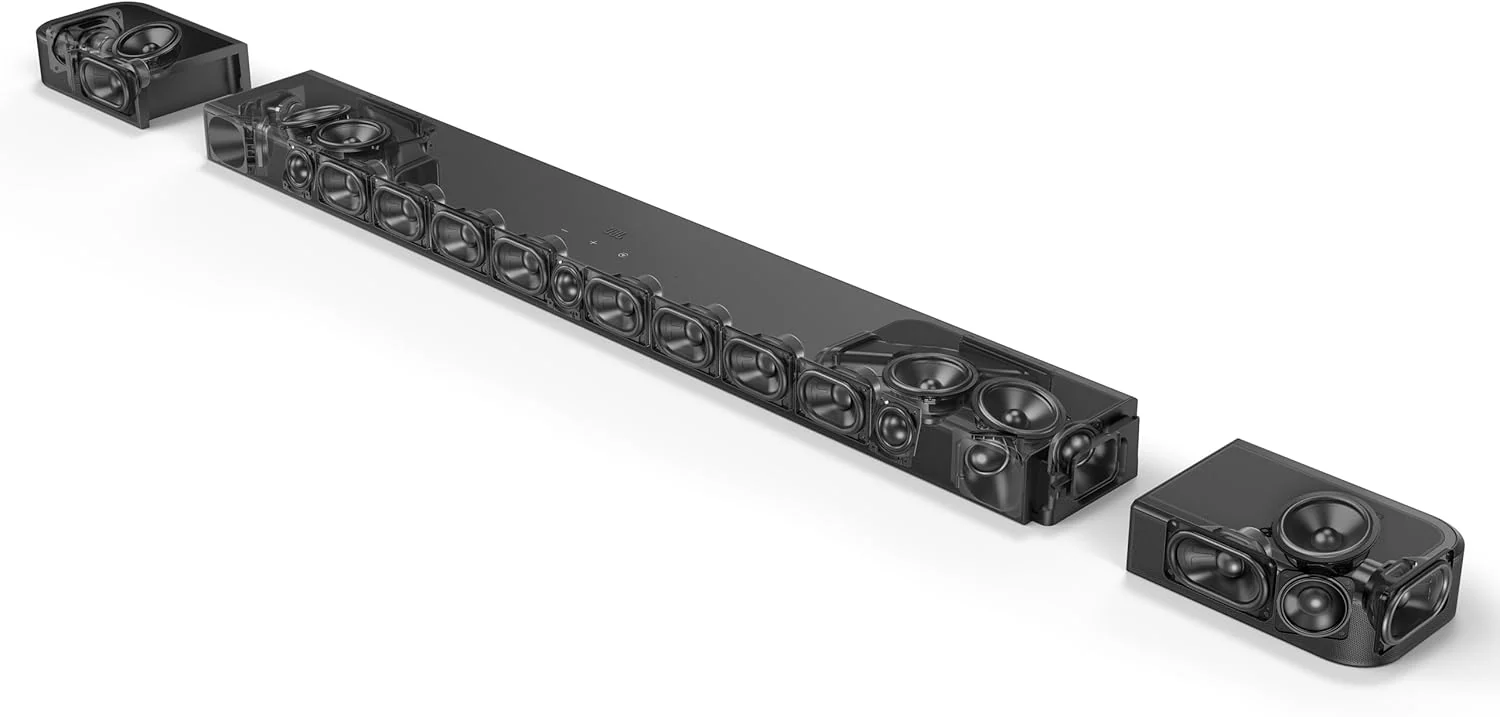

Real atmospheric surround sound with detachable wireless speakers
Experience the pinnacle of 3D surround sound with breathtaking height channels. Six up-firing speakers in the soundbar and the wireless rear speakers deliver true Dolby Atmos® sound. No extra wires. No power connections. Just lift the detachable surround speakers off the soundbar—you can do it with just one hand—and place them behind where you’re sitting to create a true surround-sound experience. It’s that simple. Whether you’re binge-watching your new favorite show or hosting a movie night, the speakers’ long-lasting batteries mean you’ll enjoy immersive, cinematic surround sound for hours. And when you’re done, just place the speakers back on the bar to recharge overnight.
True Dolby Atmos® and DTS:X
Plunge into theater-quality 3D spatial sound with true Dolby Atmos® and DTS:X. Shiver as spaceships fill the sky overhead. Feel explosions that rumble through your body. Experience music like you’re right there in the recording studio.
MultiBeam™ 3.0
Wherever you’re sitting, you’ll be in the middle of the action. Our MultiBeam™ 3.0 delivers a wide, cinema-like soundstage that makes every high-speed chase or epic fight scene come alive. The sound beams perfectly fill your room, delivering truly immersive, lifelike, and realistic sound reproduction.
PureVoice 2.0
Never miss a softly spoken line or a whispered plot twist. JBL’s own PureVoice 2.0 automatically raises or optimizes the dialogue, based on both ambient sound in the scene and your soundbar’s volume. So you’ll always hear every word, clearly and consistently, in cinema-quality sound.
SmartDetails
Hear all the subtleties in a film’s sound mix, just like you would in the theater. From a creaking door to a faraway shout, experience every detail the way the filmmakers intended in a clear, balanced sound field, thanks to JBL’s own advanced sound enhancement technology.
Broadcasting
You don’t want to miss any of the big game, even when you’re in the kitchen making another batch of hot wings. Just bring one—or both, for stereo sound—of the detachable wireless speakers with you and you’ll hear the same great movie-quality audio your family and guests are enjoying in the other room.
Portable Bluetooth® speakers
Take theater-quality sound along with you, around the house or into the back yard. Pair one of the detachable wireless speakers to your Bluetooth® device and it becomes a powerful portable. Or enjoy true stereo sound by pairing both speakers. And you can always add even more compatible JBL or Harman Kardon speakers using Auracast™.
JBL ONE App
Set up the soundbar using the JBL ONE app, then make it yours. Customize the sound your way with a precise equalizer, browse your favorite music apps, and get software upgrades for all the latest features, right from your couch.
Specifications
| General Specifications | |
| Model | BAR 1300XMK2 (soundbar unit) BAR 1300XMK2 SURROUND (detachable speaker) BAR 1300XMK2 SUB (subwoofer unit) |
| Sound system | 11.1.4 channel |
| Power supply | 100 - 240V AC, ~ 50/60Hz |
| Total speaker power output* (Max. @THD 1%) | 1570W |
| Soundbar output power** (Max. @THD 1%) | 950W |
| Surround speaker output power*** (Max. @THD 1%) | 2x 160W |
| Subwoofer output power**** (Max. @THD 1%) | 300W |
| * RMS @THD 1% | 785W ** RMS @THD 1% |
| Soundbar transducer | 8x (50x75mm) racetrack drivers, 7x 1" (25mm) tweeters, 4x 3" (75mm) up-firing full-range drivers |
| Surround speaker transducer | 2x (50x90mm) racetrack drivers, 1x 2" (50mm) full-range drivers, 1x 3" (75mm) up-firing full-range drivers |
| Subwoofer transducer | 12" (311mm) |
| Networked standby power | < 2 W |
| Operating temperature | 0°C - 45°C |
| Lithium battery | 7.2V, 4722mAh |
| Detachable surround speaker playtime | up to 10 hours (may vary according to content type and volume level) |
| Audio Specifications | |
| Frequency response | 33Hz - 20kHz (-6dB) |
| Audio inputs | Optical, Bluetooth, USB (USB playback is available in US version. For other versions, USB is for Service only.) |
| Dimensions | |
| Total soundbar dimensions (W x H x D) | 1404 x 58 x 136 mm / 55.3" x 2.3" x 5.4" |
| Soundbar dimensions (W x H x D) | 1030 x 58 x 136 mm / 40.6" x 2.3" x 5.4" |
| Detachable surround speaker dimensions (each) (W x H x D) | 202 x 58 x 136mm / 8" x 2.3" x 5.4" |
| Subwoofer dimensions (W x H x D) | 380 x 482.5 x 380mm / 15” x 19” x 15” |
| Soundbar weight | 5.93kg / 13lbs |
| Detachable surround speaker weight (each) | 1.3 kg / 2.8lbs |
| Subwoofer weight | 15.4kg / 34lbs |
| Control and Connection Specifications | |
| USB port | Type A |
| USB rating | 5V DC, 0.5A |
| Supporting file formats | mp3 |
| MP3 codec | MPEG 1 Layer 2/3, MPEG 2 Layer 3, MPEG 2.5 Layer 3 |
| MP3 sampling rate | 16 - 48 kHz |
| MP3 bitrate | 80 - 320 kbps |
| Bluetooth version | Main Bar - v5.3, Detachable surround speaker - v5.4 |
| Main bar Bluetooth profile | A2DP v1.3, AVRCP v1.5 Detachable surround speaker Bluetooth profile |
| Bluetooth transmitter frequency range | 2400 MHz – 2483.5 MHz |
| Bluetooth transmitter power | <15 dBm (EIRP) |
| Wi-Fi network | IEEE 802.11 a/b/g/n/ac/ax (2.4GHz/5GHz) |
| 2.4G Wi-Fi transmitter frequency range | 2412 - 2472 MHz (2.4 GHz ISM Band, USA 11 Channels, Europe and others 13 Channels) |
| 2.4G Wi-Fi transmitter power | < 20 dBm (EIRP) |
| 5G Wi-Fi transmitter frequency range | 5.15 - 5.35GHz, 5.470 - 5.725GHz, 5.725 - 5.825GHz |
| 5G Wi-Fi transmitter power | 5.15 - 5.25GHz <23dBm, 5.25 - 5.35GHz & 5.470 - 5.725GHz <23dBm, 5.725 - 5.825GHz <23dBm (EIRP) |
| 5G wireless transmitter power | 5.15 - 5.25GHz <23dBm (EIRP) , 5.25 - 5.35GHz & 5.470 - 5.725GHz <23dBm (EIRP) , 5.725 - 5.825GHz <23dBm (EIRP) |
| Note | Band 5.6 - 5.64 GHz will be disabled when shipped to Australia / New Zealand. |
| Video Specifications | |
| HDMI video input | 3 |
| HDMI video output (with Enhanced Audio Return Channel, eARC) | 1 |
| HDMI HDCP version | 2.3 |
| HDR pass through | HDR10+, Dolby Vision |
